VGI is a collection of tools which enables a designer to extract VHDL from blockdiagrams and state machines. Truthtable support is also included. The diagrams can be entered with tgif and then VGI tools can extract these diagrams. They can also convert VHDL entity headers into tgif blocks which can then be used to assemble block diagrams.

Current Version:   1.7 (beta)

License Type:   GPL

Home Site: (vgi*)

Source Code Availability:   Yes

Available Binary Packages:

  • Debian Package:   No
  • RedHat RPM Package:   No
  • Other Packages:   ??

Targeted Platforms:

UNIX, Linux

Software/Hardware Requirements:

gnu-awk, tgif

Other Links:

Mailing Lists/USENET News Groups:


User Comments:

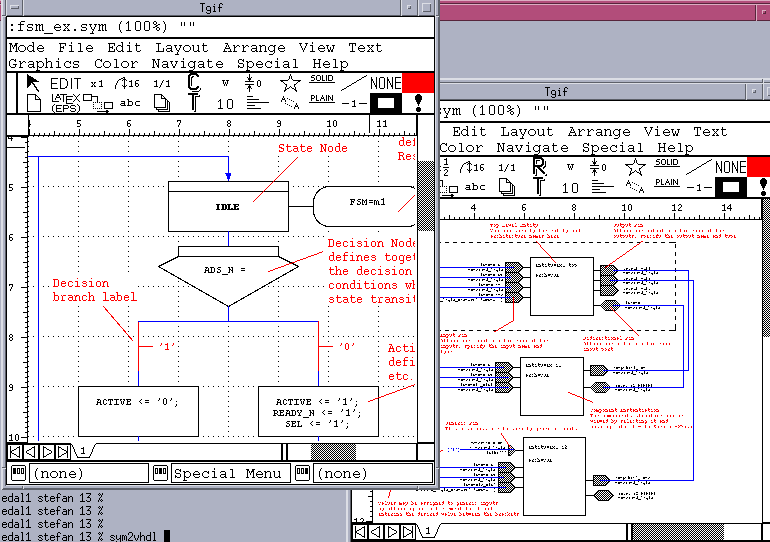

See A Screen Shot?
