Pcb Pcb is a handy tool for the X Window System build to design printed circuit boards. It uses 1/1000 inch coordinates and comes with a number of predefined circuits.

Current Version:   1.6.3 License Type:   GPL

Home Site: http://bach.ece.jhu.edu/~haceaton/pcb/ Source Code Availability:   Yes (from Home Site) Available Binary Packages: Debian Package:   Yes, http://www.debian.org/distrib/packages RedHat RPM Package:   No Other Packages:   No Targeted Platforms: all UNIX systems. Software/Hardware Requirements: GNU m4, some systems need flex/bison, TeX, texinfo, dvips to re-build documentation, X11R5 or later including Athena Widgets

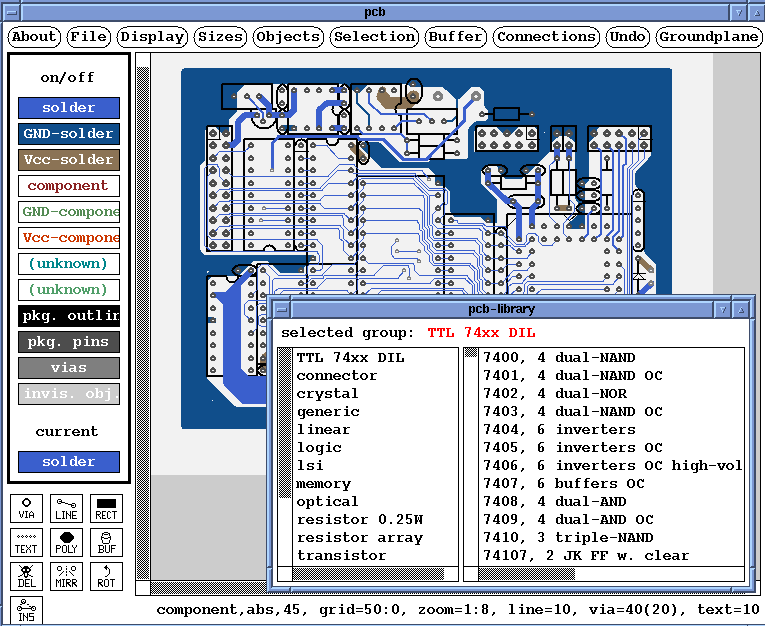

Other Links: None Mailing Lists/USENET News Groups: Mailing List: pcb@majordomo.uni-ulm.de User Comments: None See A Screen Shot?
