Logo SvLis is an efficient set-theoretic geometric modeller which is straightforward enough for any technical person who knows a little C++ to get to grips with in a day or two, but which is sufficiently rich in operations and entities to be able to represent a very wide range of shapes for all aspects of engineering, for many aspects of science, and possibly some for art as well. It is user-extendible in lots of ways, and provides safe function calls to give access to all its internal geometric structures. It is intended to be easy and intuitive to program with, allowing operations to be performed using overloaded operators and functions in the usual object-oriented way, but using sophisticated memory-management strategies to allow the sharing of common data and the efficient passing of results in a completely transparent manner.

All the svLis documentation is on-line under the svLis homepage.

Current Version:   Version 3 (version 4 will contain a Voronoi diagram package and an associated tet-mesher for FE work, due this October)

License Type:   Free for Non-Commercial Use

Home Site:

Source Code Availability:   No

Available Binary Packages:

  • Debian Package:   No
  • RedHat RPM Package:   No
  • Other Packages:   Yes (from Home Site)

Targeted Platforms:

Linux/ix86, SunOS, SGI, Windows 95/NT

Software/Hardware Requirements:

OpenGL or Mesa graphics library.

Other Links:

Mailing Lists/USENET News Groups:


User Comments:

  • None

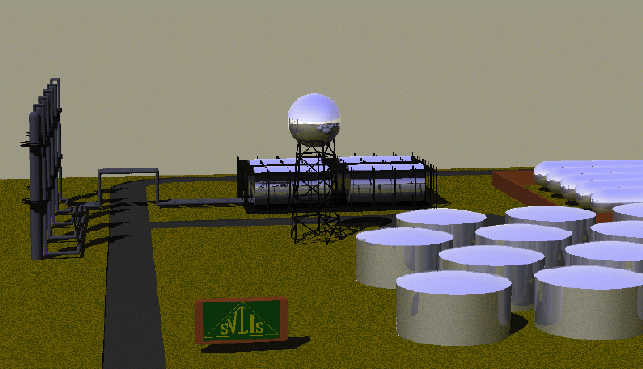

See A Screen Shot?
